VOLKSWAGEN Passat IV Interior Information: Photos and Data about Door Panel, Instrument Panel and more!

VOLKSWAGEN Passat IV
VOLKSWAGEN Bora (1997-2004)VOLKSWAGEN Bora (1997-2004)VOLKSWAGEN Passat (1988-1996)VOLKSWAGEN Passat (2005-?)TOYOTA Avensis (1998-2003)VOLVO S 40 (1995-2004) 6D-Navigator
Brand: VOLKSWAGEN
Model: Passat
Start of production (SOP): 1997
End of production (EOP): 2005
Class: D

The following data-sets are available for this model:
Passat , 4-dr. Sedan 9.1997-1999
Passat , FL1, 4-dr. Sedan 1999-11.2000
Passat , FL2, 4-dr. Sedan 11.2000-2005
The blue arrow points to the currently active data-set.
VOLKSWAGEN Passat IV - SelfBase interior pictures: (of selected variant)

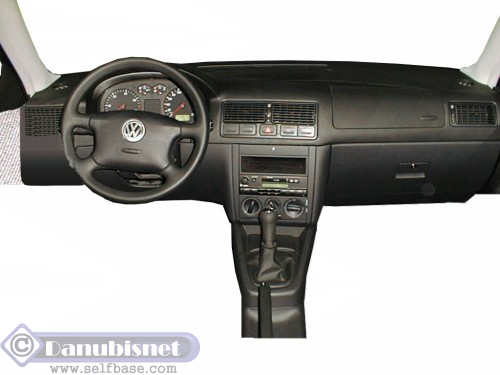

IP front
IP front
ZOOM MAX
IP side
IP side
ZOOM MAX
centre console
centre console
ZOOM MAX

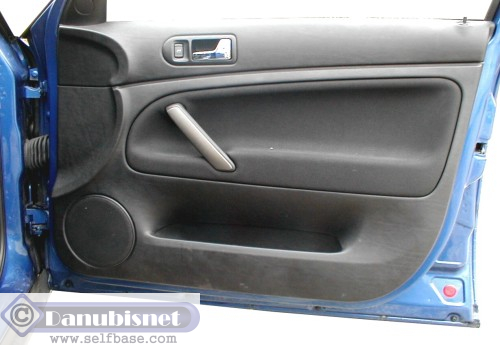

DP front
DP front
ZOOM MAX
DPf backside
DPf backside
ZOOM MAX

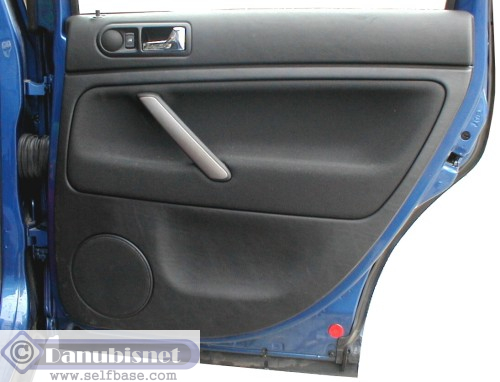

DP rear
DP rear
ZOOM MAX

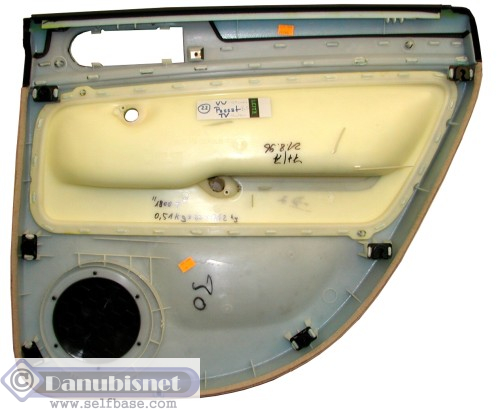

DPr backside
DPr backside
ZOOM MAX
VOLKSWAGEN Passat IV - Instrument Panel data
(of selected variant)
Faurecia
IP Supplier 1:
none
IP Supplier 2:
PVC      INFO PVC
PVC skins cast from powder (drysol)
IP Coverstock:
Faurecia
IP Coverstock supplier:
PS      INFO PS
cast skins produced by powderslush technology
IP Coverstock technology:
PUR      INFO PUR
crosslinked polyurethane - used as semi-rigid foam layer or as compact skin
IP Foam:
SMA-GF      INFO SMA-GF
styrene maleic anhydride reinforced with glass fibers (xx%)
IP Insert
injection      INFO injection
high-pressure filling of heated tools with molten thermoplastic resin
IP Insert technology
VW
IP Insert supplier
no
Separate binnacle
separate lid      INFO separate lid
passenger airbag door construction, where a separate door is assembled with the IP.
Passenger airbag
VOLKSWAGEN Passat IV - Door Panel data
(of selected variant)
Lear
Door Panel Supplier 1sss
SAI
Door Panel Supplier 2:
UEV      INFO UEV
"unsupported expanded vinyl" - 2 layer vacuum-forming foil (compact PVC/PVC foam)
Upper coverstock
?
Upper coverstock supplier
VF      INFO VF
vacuum-forming technology ; uses sheetstock
Upper coverstock technology
PVC      INFO PVC
PVC skins cast from powder (drysol)
Upper foam
fabric      INFO fabric
polyester fabrics ; rarely polypropylene or polyamide
Medaillon
PUR cut      INFO PUR cut
polyurethane foamsheet, cut from a block (normally open-cell)
Medaillon foam
?
Medaillon insert
no
Separate armrest
UEV      INFO UEV
"unsupported expanded vinyl" - 2 layer vacuum-forming foil (compact PVC/PVC foam)
Lower Coverstock
BeKa
Lower Coverstock supplier
ABS      INFO ABS
acrylonitrile-butadiene-styrene polymer
Insert
injection      INFO injection
high-pressure filling of heated tools with molten thermoplastic resin
Insert technology
SAI
Insert supplier
no
Side airbag
VOLKSWAGEN Passat IV - More information
(of selected variant)
VW GROUP
O.E. manufacturer (currently)
VOLKSWAGEN
Brand:
Passat
Model:
IV
Generation:
-
Model upgrading:

Variant
4-dr. Sedan
Body:
Emden  (1997 - 1999)
Assembly plant 1
Zwickau/Mosel  (1997 - 1999)
Assembly plant 2:
-
Assembly plant 3:
B 5
Code:
B
Platform:
D
Class:
- mm
Length:
- mm
Width:
- mm
Height:
- mm
Wheelbase:

Sales Price:
VOLKSWAGEN Passat IV - Production figures
(of all variants)
285000
Germany 1997:
484700
Germany 1998:
tba
Germany 1999:
384000
Germany 2000:
486000
Germany 2001:
440500
Germany 2002:
371400
Germany 2003:
289500
Germany 2004:
150000
Germany 2005:

VOLKSWAGEN Passat IV - Production figures
VOLKSWAGEN Passat IV - Model history
(of all variants)

sorry - no information yet
