RENAULT Laguna III Interior Information: Photos and Data about Door Panel, Instrument Panel and more!

Brand: RENAULT
Model: Laguna
Start of production (SOP): 10.2007
End of production (EOP): ?
Class: D

The following data-sets are available for this model:
Laguna , 5-dr. Sedan 10.2007-?
Laguna , 3-dr. Cabrio (Coupé) 3.2009-?
The blue arrow points to the currently active data-set.

RENAULT Laguna III - SelfBase interior pictures: (of selected variant)

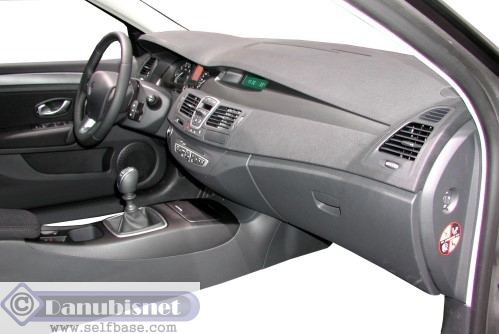

IP front

ZOOM MAX

IP side

ZOOM MAX

centre console

ZOOM MAX

DP front

ZOOM MAX

DPf backside

ZOOM MAX

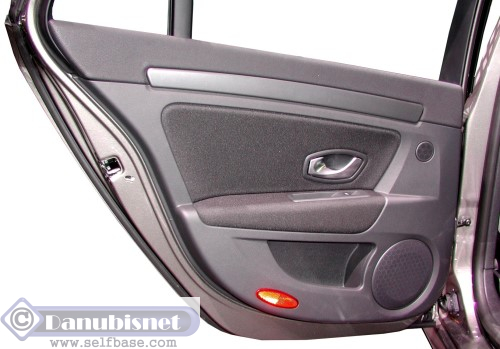

DP rear

ZOOM MAX

DPr backside

ZOOM MAX

RENAULT Laguna III - Instrument Panel data

(of selected variant)

Faurecia

IP Supplier 1:

none

IP Supplier 2:

PVC INFO PVC
PVC skins cast from powder (drysol)

IP Coverstock:

Faurecia

IP Coverstock supplier:

PS INFO PS
cast skins produced by powderslush technology

IP Coverstock technology:

PUR INFO PUR
crosslinked polyurethane - used as semi-rigid foam layer or as compact skin

IP Foam:

PP INFO PP
injection molded polypropylene (hard surface)

IP Insert

injection INFO injection
high-pressure filling of heated tools with molten thermoplastic resin

IP Insert technology

Faurecia

IP Insert supplier

Separate binnacle

seamless INFO seamless
passenger airbag door construction, where part of the IP breaks in a defined way to form a door for the bag

Passenger airbag

RENAULT Laguna III - Door Panel data

(of selected variant)

Faurecia

Door Panel Supplier 1sss

none

Door Panel Supplier 2:

UEV INFO UEV
"unsupported expanded vinyl" - 2 layer vacuum-forming foil (compact PVC/PVC foam)

Upper coverstock

Upper coverstock supplier

Upper coverstock technology

PVC INFO PVC
PVC skins cast from powder (drysol)

Upper foam

fabric INFO fabric
polyester fabrics ; rarely polypropylene or polyamide

Medaillon

PUR cut INFO PUR cut
polyurethane foamsheet, cut from a block (normally open-cell)

Medaillon foam

Medaillon insert

Separate armrest

Lower Coverstock

Lower Coverstock supplier

PP-T30 INFO PP-T30
polypropylene resin filled with talcum to enhance stiffness

Insert

injection INFO injection
high-pressure filling of heated tools with molten thermoplastic resin

Insert technology

Faurecia

Insert supplier

Side airbag

RENAULT Laguna III - More information

(of selected variant)

RENAULT-NISSAN

O.E. manufacturer (currently)

RENAULT

Brand:

Laguna

Model:

III

Generation:

Model upgrading:

Variant

5-dr. Sedan

Body:

Sandouville (2007 - ?)

Assembly plant 1

Assembly plant 2:

Assembly plant 3:

X 90

Code:

Platform:

Class:

- mm

Length:

- mm

Width:

- mm

Height:

- mm

Wheelbase:

Sales Price:

RENAULT Laguna III - Production figures
(of all variants)

tba

France 2007:

tba

France 2008:

tba

France 2009:

tba

France 2010:

tba

France 2011:

tba

France 2012:

tba

France 2013:

tba

France 2014:

tba

France 2015:

tba

France 2016:

tba

France 2017:

tba

France 2018:

tba

France 2019:

tba

France 2020:

tba

France 2021:

tba

France 2022:

tba

France 2023:

tba

France 2024:

RENAULT Laguna III - Model history
(of all variants)

sorry - no information yet
