OPEL Zafira Interior Information: Photos and Data about Door Panel, Instrument Panel and more!

OPEL Zafira
OPEL Meriva (2003-?)OPEL Sintra (1997-1999)OPEL Zafira (2005-?)NISSAN Almera Tino (2000-?)RENAULT Scénic (1996-2003) 6D-Navigator
Brand: OPEL
Model: Zafira
Start of production (SOP): 1.1999
End of production (EOP): 2005
Class: MV B

The following data-sets are available for this model:
Zafira , 5-dr. Minivan 1.1999-2.2003
Zafira , FL1, 5-dr. Minivan 2.2003-2005
The blue arrow points to the currently active data-set.
OPEL Zafira - SelfBase interior pictures: (of selected variant)

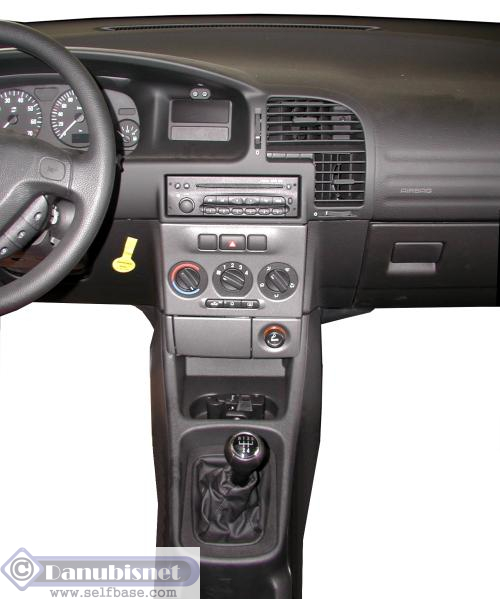

IP front
IP front
ZOOM MAX

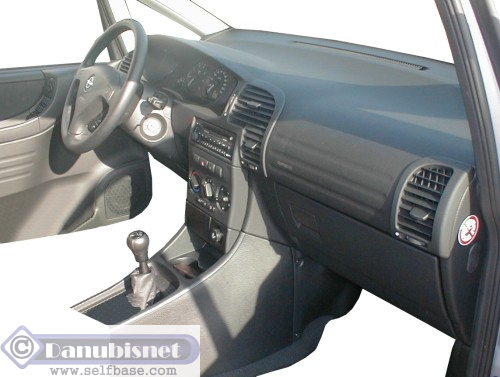

IP side
IP side
ZOOM MAX
centre console
centre console
ZOOM MAX

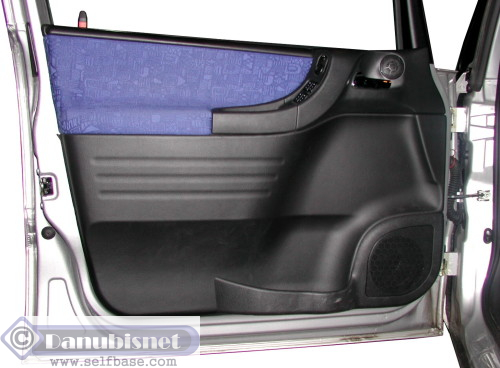

DP front
DP front
ZOOM MAX

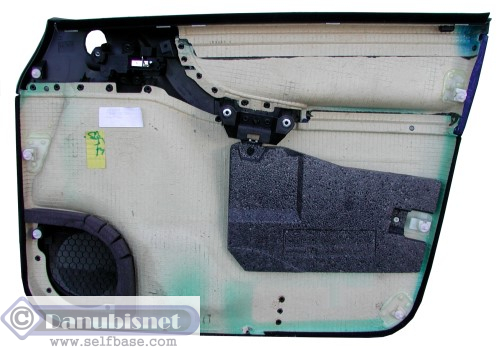

DPf backside
DPf backside
ZOOM MAX

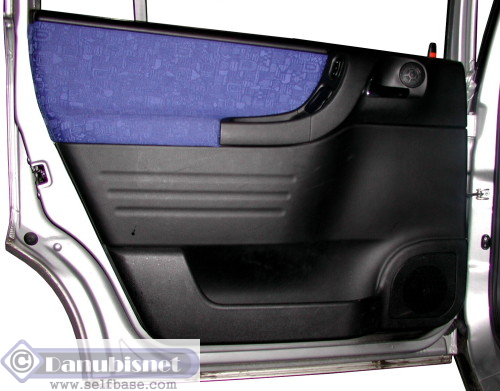

DP rear
DP rear
ZOOM MAX
DPr backside
DPr backside
ZOOM MAX
OPEL Zafira - Instrument Panel data
(of selected variant)
JCI
IP Supplier 1:
none
IP Supplier 2:
TPO      INFO TPO
"thermoplastic olefin" - elastomeric polypropylene, vacuum-forming foil
IP Coverstock:
BeKa
IP Coverstock supplier:
VF      INFO VF
vacuum-forming technology ; uses sheetstock
IP Coverstock technology:
X-PP      INFO X-PP
electron-beam crosslinked PP/PE-foam sheets
IP Foam:
nat. fibre      INFO nat. fibre
mixture of flax, kenaf and other natural fibres to make light, impact-resistant carrier boards for large, flat panels
IP Insert
press      INFO press
natural-fibre boards are hot-pressed to produce carrier boards
IP Insert technology
JCI
IP Insert supplier
no
Separate binnacle
seamless      INFO seamless
passenger airbag door construction, where part of the IP breaks in a defined way to form a door for the bag
Passenger airbag
OPEL Zafira - Door Panel data
(of selected variant)
JCI
Door Panel Supplier 1sss
none
Door Panel Supplier 2:
TPO      INFO TPO
"thermoplastic olefin" - elastomeric polypropylene, vacuum-forming foil
Upper coverstock
BeKa
Upper coverstock supplier
VF      INFO VF
vacuum-forming technology ; uses sheetstock
Upper coverstock technology
X-PE
Upper foam
fabric      INFO fabric
polyester fabrics ; rarely polypropylene or polyamide
Medaillon
PUR cut      INFO PUR cut
polyurethane foamsheet, cut from a block (normally open-cell)
Medaillon foam
NF      INFO NF
natural fibre mixtures
Medaillon insert
no
Separate armrest
TPO-FL
Lower Coverstock
none
Lower Coverstock supplier
NF      INFO NF
natural fibre mixtures
Insert
press      INFO press
natural-fibre boards are hot-pressed to produce carrier boards
Insert technology
JCI
Insert supplier
no
Side airbag
OPEL Zafira - More information
(of selected variant)
GENERAL MOTORS
O.E. manufacturer (currently)
OPEL
Brand:
Zafira
Model:
I
Generation:
-
Model upgrading:

Variant
5-dr. Minivan
Body:
Bochum  (1999 - 2003)
Assembly plant 1
(non-EU) Thailand
Assembly plant 2:
-
Assembly plant 3:
T600
Code:
T
Platform:
MV B
Class:
- mm
Length:
- mm
Width:
- mm
Height:
- mm
Wheelbase:

Sales Price:
OPEL Zafira - Production figures
(of all variants)
150100
Germany 1999:
217700
Germany 2000:
229500
Germany 2001:
222500
Germany 2002:
216600
Germany 2003:
173700
Germany 2004:
80000
Germany 2005:

OPEL Zafira - Production figures
OPEL Zafira - Model history
(of all variants)

sorry - no information yet
