OPEL Signum Interior Information: Photos and Data about Door Panel, Instrument Panel and more!

Brand: OPEL
Model: Signum
Start of production (SOP): 5.2003
End of production (EOP): ?
Class: D

The following data-sets are available for this model:
Signum , 4-dr. Sedan 5.2003-9.2005
Signum , FL1, 4-dr. Sedan 9.2005-?
The blue arrow points to the currently active data-set.

OPEL Signum - SelfBase interior pictures: (of selected variant)

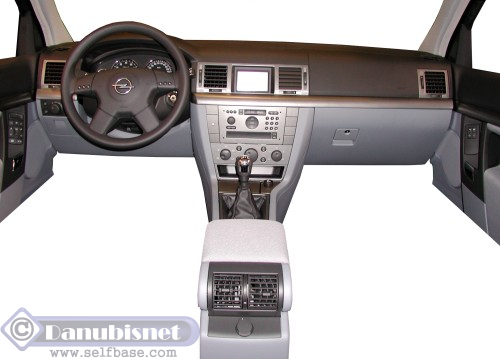

IP front

ZOOM MAX

IP side

ZOOM MAX

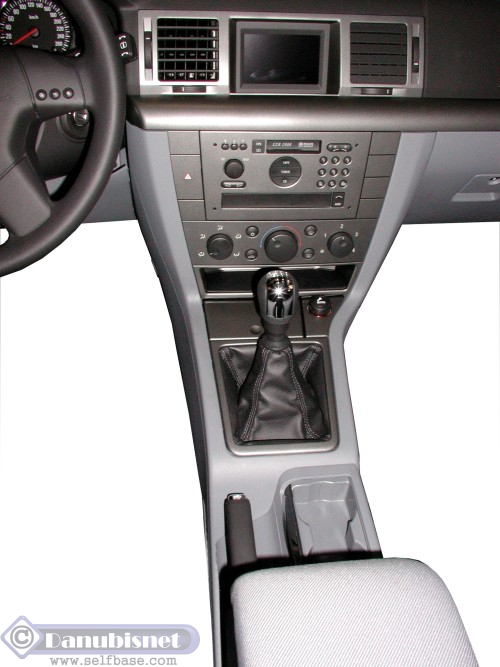

centre console

ZOOM MAX

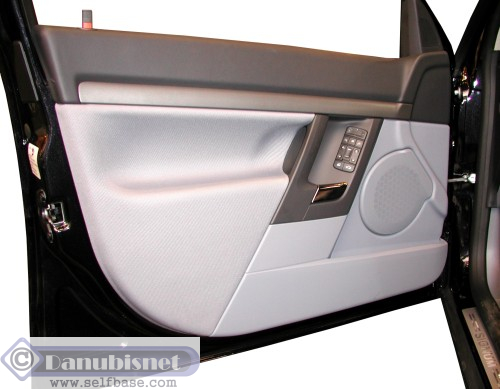

DP front

ZOOM MAX

DPf backside

ZOOM MAX

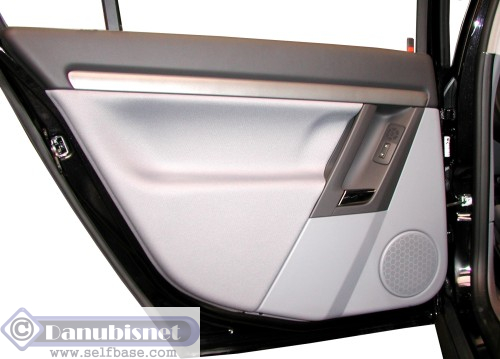

DP rear

ZOOM MAX

DPr backside

ZOOM MAX

OPEL Signum - Instrument Panel data

(of selected variant)

OPEL

IP Supplier 1:

none

IP Supplier 2:

PUR INFO PUR
crosslinked polyurethane - used as semi-rigid foam layer or as compact skin

IP Coverstock:

Recticel

IP Coverstock supplier:

Spray INFO Spray
cast skins produced by spraying 2K-PUR onto a negative nickel mould

IP Coverstock technology:

PUR INFO PUR
crosslinked polyurethane - used as semi-rigid foam layer or as compact skin

IP Foam:

SMA-GF INFO SMA-GF
styrene maleic anhydride reinforced with glass fibers (xx%)

IP Insert

injection INFO injection
high-pressure filling of heated tools with molten thermoplastic resin

IP Insert technology

OPEL

IP Insert supplier

Separate binnacle

seamless INFO seamless
passenger airbag door construction, where part of the IP breaks in a defined way to form a door for the bag

Passenger airbag

OPEL Signum - Door Panel data

(of selected variant)

Door Panel Supplier 1sss

Door Panel Supplier 2:

TPO INFO TPO
"thermoplastic olefin" - elastomeric polypropylene, vacuum-forming foil

Upper coverstock

Upper coverstock supplier

VF INFO VF
vacuum-forming technology ; uses sheetstock

Upper coverstock technology

X-PE

Upper foam

fabric INFO fabric
polyester fabrics ; rarely polypropylene or polyamide

Medaillon

PUR cut INFO PUR cut
polyurethane foamsheet, cut from a block (normally open-cell)

Medaillon foam

NF INFO NF
natural fibre mixtures

Medaillon insert

Separate armrest

TPO-FL

Lower Coverstock

Lower Coverstock supplier

NF ? INFO NF ?
natural fibre mixtures

Insert

press INFO press
natural-fibre boards are hot-pressed to produce carrier boards

Insert technology

Insert supplier

Side airbag

OPEL Signum - More information

(of selected variant)

GENERAL MOTORS

O.E. manufacturer (currently)

OPEL

Brand:

Signum

Model:

Generation:

Model upgrading:

Variant

4-dr. Sedan

Body:

Rüsselsheim (2003 - 2005)

Assembly plant 1

Assembly plant 2:

Assembly plant 3:

Code:

Platform:

Class:

- mm

Length:

- mm

Width:

- mm

Height:

- mm

Wheelbase:

Sales Price:

OPEL Signum - Production figures
(of all variants)

39600

Germany 2003:

19900

Germany 2004:

16500

Germany 2005:

14500

Germany 2006:

tba

Germany 2007:

tba

Germany 2008:

tba

Germany 2009:

tba

Germany 2010:

tba

Germany 2011:

tba

Germany 2012:

tba

Germany 2013:

tba

Germany 2014:

tba

Germany 2015:

tba

Germany 2016:

tba

Germany 2017:

tba

Germany 2018:

tba

Germany 2019:

tba

Germany 2020:

tba

Germany 2021:

tba

Germany 2022:

tba

Germany 2023:

OPEL Signum - Model history
(of all variants)

sorry - no information yet
