OPEL Corsa III FL1 Interior Information: Photos and Data about Door Panel, Instrument Panel and more!

Brand: OPEL
Model: Corsa
Start of production (SOP): 8.2000
End of production (EOP): 10.2006
Class: B

The following data-sets are available for this model:
Corsa , 3-dr. Sedan 8.2000-9.2003
Corsa , 5-dr. Sedan 8.2000-9.2003
Corsa , FL1, 3-dr. Sedan 9.2003-10.2006
Corsa , FL1, 5-dr. Sedan 9.2003-10.2006
The blue arrow points to the currently active data-set.

OPEL Corsa III FL1 - SelfBase interior pictures: (of selected variant)

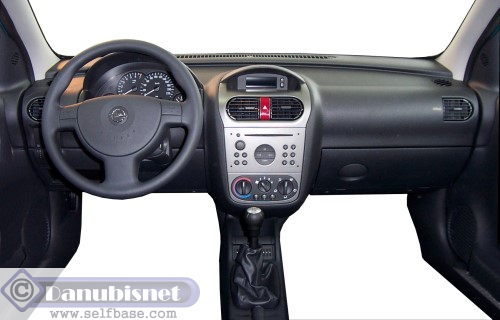

IP front

ZOOM MAX

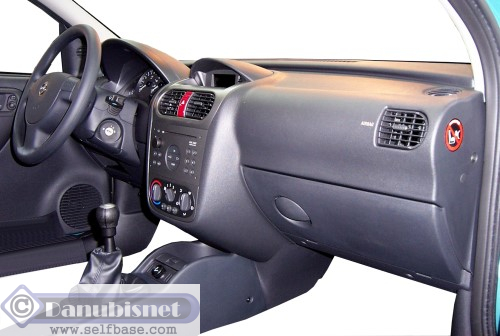

IP side

ZOOM MAX

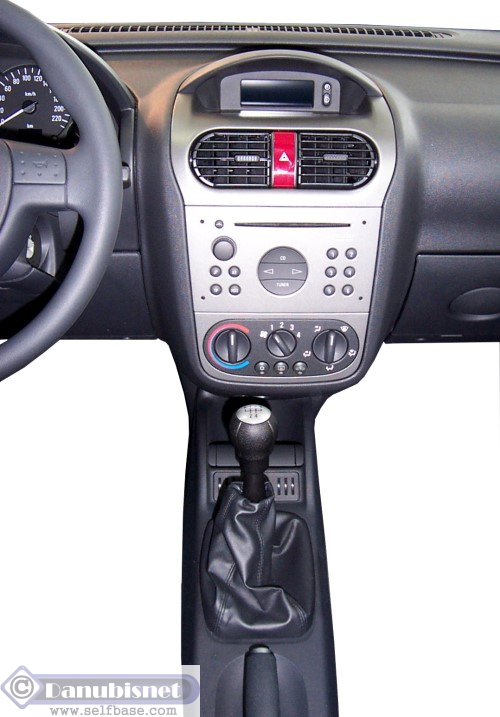

centre console

ZOOM MAX

DP front

ZOOM MAX

DPf backside

ZOOM MAX

DP rear

ZOOM MAX

DPr backside

ZOOM MAX

OPEL Corsa III FL1 - Instrument Panel data

(of selected variant)

Delphi

IP Supplier 1:

SAI, Peguform

IP Supplier 2:

PP-T20 INFO PP-T20
polypropylene resin filled with talcum to enhance stiffness

IP Coverstock:

none

IP Coverstock supplier:

injection INFO injection
high-pressure filling of heated tools with molten thermoplastic resin

IP Coverstock technology:

none

IP Foam:

PP-T30 INFO PP-T30
polypropylene resin filled with talcum to enhance stiffness

IP Insert

injection INFO injection
high-pressure filling of heated tools with molten thermoplastic resin

IP Insert technology

IP Insert supplier

Separate binnacle

seamless INFO seamless
passenger airbag door construction, where part of the IP breaks in a defined way to form a door for the bag

Passenger airbag

OPEL Corsa III FL1 - Door Panel data

(of selected variant)

Findlay

Door Panel Supplier 1sss

none

Door Panel Supplier 2:

PP INFO PP
injection molded polypropylene (hard surface)

Upper coverstock

none

Upper coverstock supplier

injection INFO injection
high-pressure filling of heated tools with molten thermoplastic resin

Upper coverstock technology

none

Upper foam

fabric INFO fabric
polyester fabrics ; rarely polypropylene or polyamide

Medaillon

none

Medaillon foam

LPM-PP

Medaillon insert

Separate armrest

PP INFO PP
injection molded polypropylene (hard surface)

Lower Coverstock

none

Lower Coverstock supplier

PP INFO PP
injection molded polypropylene (hard surface)

Insert

injection INFO injection
high-pressure filling of heated tools with molten thermoplastic resin

Insert technology

Faurecia

Insert supplier

Side airbag

OPEL Corsa III FL1 - More information

(of selected variant)

GENERAL MOTORS

O.E. manufacturer (currently)

OPEL

Brand:

Corsa

Model:

III

Generation:

Facelift (FL) 1

Model upgrading:

Variant

5-dr. Sedan

Body:

Eisenach (2003 - 2006)

Assembly plant 1

Zaragoza (2003 - 2006)

Assembly plant 2:

Assembly plant 3:

S4300

Code:

Platform:

Class:

- mm

Length:

- mm

Width:

- mm

Height:

- mm

Wheelbase:

Sales Price:

OPEL Corsa III FL1 - Production figures
(of all variants)

tba

Spain 2000:

tba

Spain 2001:

tba

Spain 2002:

tba

Spain 2003:

tba

Spain 2004:

tba

Spain 2005:

tba

Spain 2006:

454900

Germany 2000:

489300

Germany 2001:

451500

Germany 2002:

424600

Germany 2003:

369800

Germany 2004:

319700

Germany 2005:

330400

Germany 2006:

OPEL Corsa III FL1 - Model history
(of all variants)

sorry - no information yet
