You are here: HOME » Database access » alphabetical » OPEL Astra II

language choice:

OPEL Astra II Interior Information: Photos and Data about Door Panel, Instrument Panel and more!

Brand: OPEL
Model: Astra
Start of production (SOP): 3.1998
End of production (EOP): 2004
Class: C

The following data-sets are available for this model:
Astra , 3-dr. Sedan 3.1998-3.2004
Astra , 4-dr. Sedan 3.1998-3.2004
Astra , 5-dr. Sedan 3.1998-3.2004
Astra , 5-dr. Station (Caravan LHD) 3.1998-3.2004
Astra , 3-dr. Coupe (Coupe) 3.2000-2004
Astra , 2-dr. Cabrio (Cabrio) 5.2001-2004
The blue arrow points to the currently active data-set.

OPEL Astra II - SelfBase interior pictures: (of selected variant)

IP front

ZOOM MAX

IP side

ZOOM MAX

centre console

ZOOM MAX

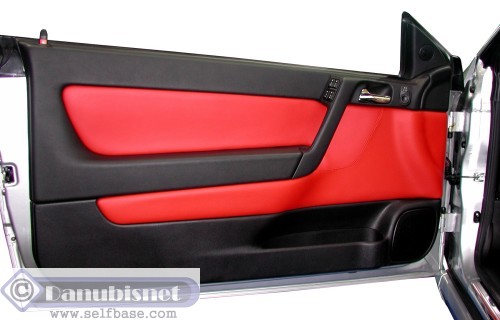

DP front

ZOOM MAX

DPf backside

ZOOM MAX

DP rear

ZOOM MAX

DPr backside

ZOOM MAX

OPEL Astra II - Instrument Panel data

(of selected variant)

JCI

IP Supplier 1:

Magna

IP Supplier 2:

TPO INFO TPO
"thermoplastic olefin" - elastomeric polypropylene, vacuum-forming foil

IP Coverstock:

BeKa

IP Coverstock supplier:

VF INFO VF
vacuum-forming technology ; uses sheetstock

IP Coverstock technology:

X-PP INFO X-PP
electron-beam crosslinked PP/PE-foam sheets

IP Foam:

woodfibre INFO woodfibre
low-cost natural fibres, to make light-weight boards

IP Insert

press INFO press
natural-fibre boards are hot-pressed to produce carrier boards

IP Insert technology

JCI

IP Insert supplier

Separate binnacle

seamless INFO seamless
passenger airbag door construction, where part of the IP breaks in a defined way to form a door for the bag

Passenger airbag

OPEL Astra II - Door Panel data

(of selected variant)

Door Panel Supplier 1sss

none

Door Panel Supplier 2:

TPO INFO TPO
"thermoplastic olefin" - elastomeric polypropylene, vacuum-forming foil

Upper coverstock

Alkor

Upper coverstock supplier

VF INFO VF
vacuum-forming technology ; uses sheetstock

Upper coverstock technology

X-PE

Upper foam

SEV INFO SEV
"supported expanded vinyl" - 3 layer foil (compact PVC/PVC foam/fabric)

Medaillon

PUR cut INFO PUR cut
polyurethane foamsheet, cut from a block (normally open-cell)

Medaillon foam

NF INFO NF
natural fibre mixtures

Medaillon insert

Separate armrest

TPO-FL

Lower Coverstock

Alkor

Lower Coverstock supplier

NF INFO NF
natural fibre mixtures

Insert

press INFO press
natural-fibre boards are hot-pressed to produce carrier boards

Insert technology

Insert supplier

Side airbag

OPEL Astra II - More information

(of selected variant)

GENERAL MOTORS

O.E. manufacturer (currently)

OPEL

Brand:

Astra

Model:

Generation:

Model upgrading:

Coupe

Variant

3-dr. Coupe

Body:

Grugliasco (2000 - 2004)

Assembly plant 1

Assembly plant 2:

Assembly plant 3:

T3000

Code:

Platform:

Class:

- mm

Length:

- mm

Width:

- mm

Height:

- mm

Wheelbase:

Sales Price:

OPEL Astra II - Production figures
(of all variants)

552500

Germany 1998:

548800

Germany 1999:

443100

Germany 2000:

350300

Germany 2001:

501200

Germany 2002:

413800

Germany 2003:

75000

Germany 2004:

tba

Italy 2000:

tba

Italy 2001:

tba

Italy 2002:

tba

Italy 2003:

tba

Italy 2004:

OPEL Astra II - Model history
(of all variants)

sorry - no information yet
