MERCEDES S-Class IV Interior Information: Photos and Data about Door Panel, Instrument Panel and more!

Brand: MERCEDES
Model: S-Class
Start of production (SOP): 1991
End of production (EOP): 1998
Class: F

The following data-sets are available for this model:
S-Class , 4-dr. Sedan 1991-1994
S-Class , FL1, 4-dr. Sedan 1994-1998
The blue arrow points to the currently active data-set.

MERCEDES S-Class IV - SelfBase interior pictures: (of selected variant)

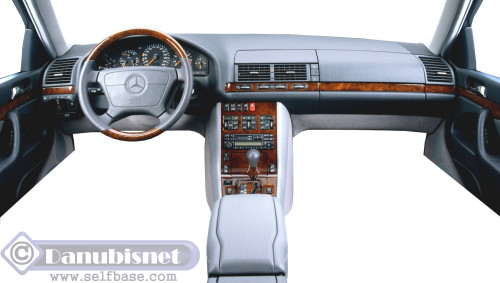

IP front

ZOOM MAX

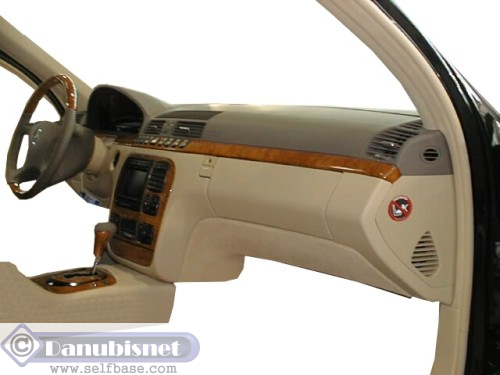

IP side

ZOOM MAX

centre console

ZOOM MAX

DP front

ZOOM MAX

DPf backside

ZOOM MAX

DP rear

ZOOM MAX

DPr backside

ZOOM MAX

MERCEDES S-Class IV - Instrument Panel data

(of selected variant)

SAI

IP Supplier 1:

none

IP Supplier 2:

ABS/PVC INFO ABS/PVC
plasticised PVC blended with ABS (heat-modifier) - for vacuum-forming sheets

IP Coverstock:

BeKa

IP Coverstock supplier:

VF INFO VF
vacuum-forming technology ; uses sheetstock

IP Coverstock technology:

PUR INFO PUR
crosslinked polyurethane - used as semi-rigid foam layer or as compact skin

IP Foam:

PP-GM30 INFO PP-GM30
glass-mat reinforced polypropylene board (xx% glass-fibres)

IP Insert

injection INFO injection
high-pressure filling of heated tools with molten thermoplastic resin

IP Insert technology

SAI

IP Insert supplier

Separate binnacle

separate lid INFO separate lid
passenger airbag door construction, where a separate door is assembled with the IP.

Passenger airbag

MERCEDES S-Class IV - Door Panel data

(of selected variant)

Fibrit

Door Panel Supplier 1sss

none

Door Panel Supplier 2:

UEV INFO UEV
"unsupported expanded vinyl" - 2 layer vacuum-forming foil (compact PVC/PVC foam)

Upper coverstock

Upper coverstock supplier

VF INFO VF
vacuum-forming technology ; uses sheetstock

Upper coverstock technology

PVC INFO PVC
PVC skins cast from powder (drysol)

Upper foam

leather INFO leather
automotive leather qualities show low emissions and reduced shrinkage

Medaillon

Medaillon foam

Medaillon insert

yes

Separate armrest

UEV INFO UEV
"unsupported expanded vinyl" - 2 layer vacuum-forming foil (compact PVC/PVC foam)

Lower Coverstock

BeKa

Lower Coverstock supplier

NF INFO NF
natural fibre mixtures

Insert

press INFO press
natural-fibre boards are hot-pressed to produce carrier boards

Insert technology

Fibrit

Insert supplier

yes

Side airbag

MERCEDES S-Class IV - More information

(of selected variant)

DAIMLER-CHRYSLER

O.E. manufacturer (currently)

MERCEDES

Brand:

S-Class

Model:

Generation:

Model upgrading:

Variant

4-dr. Sedan

Body:

Sindelfingen (1991 - 1994)

Assembly plant 1

Assembly plant 2:

Assembly plant 3:

W140

Code:

Platform:

Class:

- mm

Length:

- mm

Width:

- mm

Height:

- mm

Wheelbase:

Sales Price:

MERCEDES S-Class IV - Production figures
(of all variants)

67400

Germany 1991:

72600

Germany 1992:

60400

Germany 1993:

61200

Germany 1994:

63400

Germany 1995:

49900

Germany 1996:

43900

Germany 1997:

tba

Germany 1998:

MERCEDES S-Class IV - Production figures

MERCEDES S-Class IV - Model history
(of all variants)

sorry - no information yet
