MERCEDES A-Class II Interior Information: Photos and Data about Door Panel, Instrument Panel and more!

Brand: MERCEDES
Model: A-Class
Start of production (SOP): 7.2004
End of production (EOP): ?
Class: C

The following data-sets are available for this model:
A-Class , 3-dr. Sedan 7.2004-?
A-Class , 5-dr. Sedan 7.2004-?
The blue arrow points to the currently active data-set.

MERCEDES A-Class II - SelfBase interior pictures: (of selected variant)

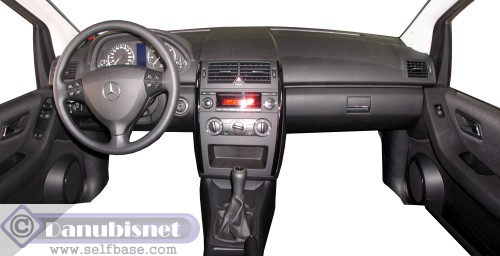

IP front

ZOOM MAX

IP side

ZOOM MAX

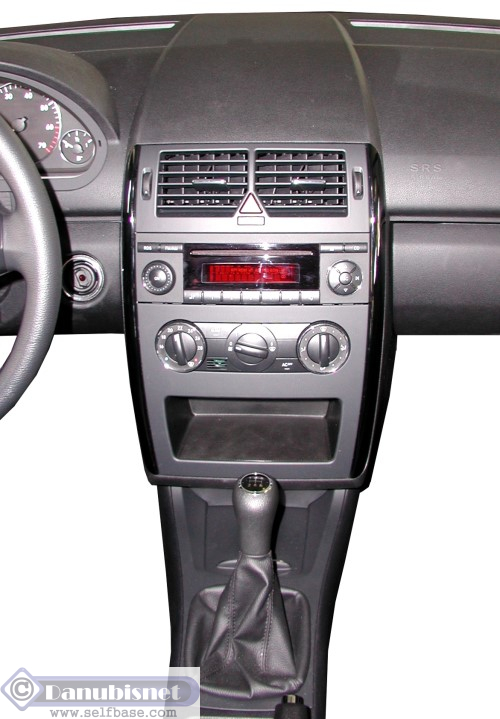

centre console

ZOOM MAX

DP front

ZOOM MAX

DPf backside

ZOOM MAX

DP rear

ZOOM MAX

DPr backside

ZOOM MAX

MERCEDES A-Class II - Instrument Panel data

(of selected variant)

JCI

IP Supplier 1:

none

IP Supplier 2:

PUR INFO PUR
crosslinked polyurethane - used as semi-rigid foam layer or as compact skin

IP Coverstock:

Recticel

IP Coverstock supplier:

Spray INFO Spray
cast skins produced by spraying 2K-PUR onto a negative nickel mould

IP Coverstock technology:

PUR INFO PUR
crosslinked polyurethane - used as semi-rigid foam layer or as compact skin

IP Foam:

PP-LGF40

IP Insert

press INFO press
natural-fibre boards are hot-pressed to produce carrier boards

IP Insert technology

Mürdter

IP Insert supplier

Separate binnacle

seamless INFO seamless
passenger airbag door construction, where part of the IP breaks in a defined way to form a door for the bag

Passenger airbag

MERCEDES A-Class II - Door Panel data

(of selected variant)

JCI

Door Panel Supplier 1sss

none

Door Panel Supplier 2:

fabric INFO fabric
polyester fabrics ; rarely polypropylene or polyamide

Upper coverstock

Upper coverstock supplier

LPM INFO LPM
low-pressure-molding technology ; substrate mainly PP

Upper coverstock technology

PUR cut INFO PUR cut
polyurethane foamsheet, cut from a block (normally open-cell)

Upper foam

none

Medaillon

none

Medaillon foam

none

Medaillon insert

yes

Separate armrest

fabric INFO fabric
polyester fabrics ; rarely polypropylene or polyamide

Lower Coverstock

Lower Coverstock supplier

PP INFO PP
injection molded polypropylene (hard surface)

Insert

LPM INFO LPM
low-pressure-molding technology ; substrate mainly PP

Insert technology

JCI

Insert supplier

Side airbag

MERCEDES A-Class II - More information

(of selected variant)

DAIMLER-CHRYSLER

O.E. manufacturer (currently)

MERCEDES

Brand:

A-Class

Model:

Generation:

Model upgrading:

Variant

3-dr. Sedan

Body:

Rastatt (2004 - ?)

Assembly plant 1

(non-EU) Brasilien

Assembly plant 2:

Assembly plant 3:

W169

Code:

Platform:

Class:

- mm

Length:

- mm

Width:

- mm

Height:

- mm

Wheelbase:

Sales Price:

MERCEDES A-Class II - Production figures
(of all variants)

64800

Germany 2004:

195200

Germany 2005:

151600

Germany 2006:

tba

Germany 2007:

tba

Germany 2008:

tba

Germany 2009:

tba

Germany 2010:

tba

Germany 2011:

tba

Germany 2012:

tba

Germany 2013:

tba

Germany 2014:

tba

Germany 2015:

tba

Germany 2016:

tba

Germany 2017:

tba

Germany 2018:

tba

Germany 2019:

tba

Germany 2020:

tba

Germany 2021:

tba

Germany 2022:

tba

Germany 2023:

tba

Germany 2024:

MERCEDES A-Class II - Production figures

MERCEDES A-Class II - Model history
(of all variants)

sorry - no information yet
