FIAT Bravo Interior Information: Photos and Data about Door Panel, Instrument Panel and more!

Brand: FIAT
Model: Bravo
Start of production (SOP): 1995
End of production (EOP): 2001
Class: C

The following data-sets are available for this model:
Bravo , 3-dr. Sedan 1995-10.1999
Brava , 5-dr. Sedan 10.1999-2001
Bravo , FL1, 3-dr. Sedan 1995-10.1999
Brava , FL1, 5-dr. Sedan 10.1999-2001
The blue arrow points to the currently active data-set.

FIAT Bravo - SelfBase interior pictures: (of selected variant)

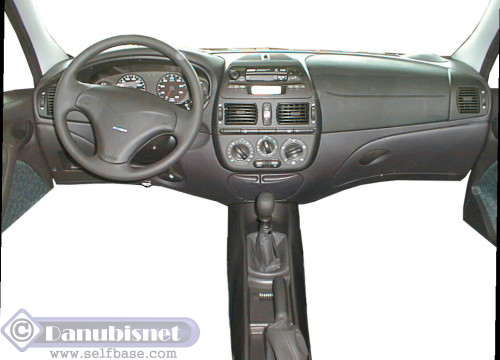

IP front

ZOOM MAX

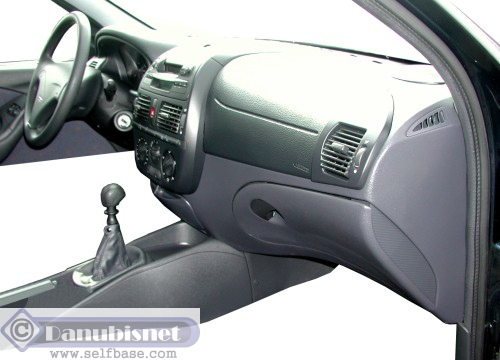

IP side

ZOOM MAX

centre console

ZOOM MAX

DP front

ZOOM MAX

DPf backside

ZOOM MAX

DP rear

ZOOM MAX

DPr backside

ZOOM MAX

FIAT Bravo - Instrument Panel data

(of selected variant)

Rigamonti

IP Supplier 1:

IP Supplier 2:

PVC INFO PVC
PVC skins cast from powder (drysol)

IP Coverstock:

Ilpea ?

IP Coverstock supplier:

PS INFO PS
cast skins produced by powderslush technology

IP Coverstock technology:

PUR INFO PUR
crosslinked polyurethane - used as semi-rigid foam layer or as compact skin

IP Foam:

PP/EPDM-T25 INFO PP/EPDM-T25
PP/EPDM blend filled with talc to enhance stiffness (xx% talc)

IP Insert

injection INFO injection
high-pressure filling of heated tools with molten thermoplastic resin

IP Insert technology

IP Insert supplier

yes

Separate binnacle

separate lid INFO separate lid
passenger airbag door construction, where a separate door is assembled with the IP.

Passenger airbag

FIAT Bravo - Door Panel data

(of selected variant)

JCI

Door Panel Supplier 1sss

Door Panel Supplier 2:

TPO INFO TPO
"thermoplastic olefin" - elastomeric polypropylene, vacuum-forming foil

Upper coverstock

Upper coverstock supplier

co-injection INFO co-injection
2-step injection process to combine different plastic materials in one part (e.g. colours, soft-hard)

Upper coverstock technology

none

Upper foam

fabric INFO fabric
polyester fabrics ; rarely polypropylene or polyamide

Medaillon

Medaillon foam

Medaillon insert

Separate armrest

TPO INFO TPO
"thermoplastic olefin" - elastomeric polypropylene, vacuum-forming foil

Lower Coverstock

none

Lower Coverstock supplier

TPO INFO TPO
"thermoplastic olefin" - elastomeric polypropylene, vacuum-forming foil

Insert

co-injection INFO co-injection
2-step injection process to combine different plastic materials in one part (e.g. colours, soft-hard)

Insert technology

Commer

Insert supplier

Side airbag

FIAT Bravo - More information

(of selected variant)

FIAT

O.E. manufacturer (currently)

FIAT

Brand:

Bravo

Model:

Generation:

Model upgrading:

Variant

3-dr. Sedan

Body:

Cassino (1995 - 1999)

Assembly plant 1

Bielsko-Biala (1995 - 1999)

Assembly plant 2:

Assembly plant 3:

182

Code:

Platform:

Class:

- mm

Length:

- mm

Width:

- mm

Height:

- mm

Wheelbase:

Sales Price:

FIAT Bravo - Production figures
(of all variants)

tba

Italy 1995:

tba

Italy 1996:

254300

Italy 1997:

192800

Italy 1998:

181400

Italy 1999:

151000

Italy 2000:

68300

Italy 2001:

tba

Poland 1995:

tba

Poland 1996:

tba

Poland 1997:

tba

Poland 1998:

tba

Poland 1999:

tba

Poland 2000:

tba

Poland 2001:

FIAT Bravo - Model history
(of all variants)

sorry - no information yet
