BMW 5 series III Interior Information: Photos and Data about Door Panel, Instrument Panel and more!

Brand: BMW
Model: 5 series
Start of production (SOP): 1988
End of production (EOP): 1995
Class: E

The following data-sets are available for this model:
5 series , 4-dr. Sedan 1988-1995
5 series , 5-dr. Station (Touring) 1988-1995
The blue arrow points to the currently active data-set.

BMW 5 series III - SelfBase interior pictures: (of selected variant)

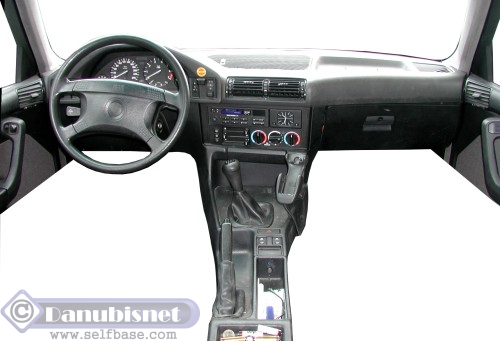

IP front

ZOOM MAX

IP side

ZOOM MAX

centre console

ZOOM MAX

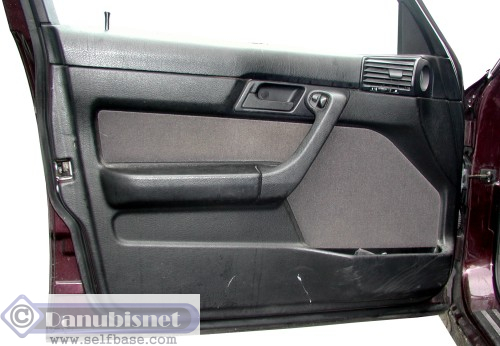

DP front

ZOOM MAX

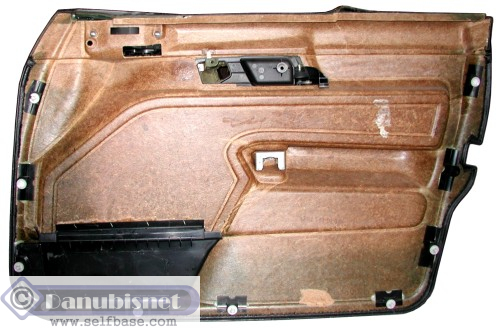

DPf backside

ZOOM MAX

DP rear

ZOOM MAX

DPr backside

ZOOM MAX

BMW 5 series III - Instrument Panel data

(of selected variant)

BMW SK

IP Supplier 1:

none

IP Supplier 2:

PVC INFO PVC
PVC skins cast from powder (drysol)

IP Coverstock:

Ymos

IP Coverstock supplier:

PS INFO PS
cast skins produced by powderslush technology

IP Coverstock technology:

PUR INFO PUR
crosslinked polyurethane - used as semi-rigid foam layer or as compact skin

IP Foam:

PP-T20 INFO PP-T20
polypropylene resin filled with talcum to enhance stiffness

IP Insert

injection INFO injection
high-pressure filling of heated tools with molten thermoplastic resin

IP Insert technology

BMW SK

IP Insert supplier

Separate binnacle

separate lid INFO separate lid
passenger airbag door construction, where a separate door is assembled with the IP.

Passenger airbag

BMW 5 series III - Door Panel data

(of selected variant)

Fibrit

Door Panel Supplier 1sss

Door Panel Supplier 2:

ABS/PVC INFO ABS/PVC
plasticised PVC blended with ABS (heat-modifier) - for vacuum-forming sheets

Upper coverstock

Upper coverstock supplier

VF INFO VF
vacuum-forming technology ; uses sheetstock

Upper coverstock technology

Upper foam

fabric INFO fabric
polyester fabrics ; rarely polypropylene or polyamide

Medaillon

Medaillon foam

Medaillon insert

Separate armrest

UEV INFO UEV
"unsupported expanded vinyl" - 2 layer vacuum-forming foil (compact PVC/PVC foam)

Lower Coverstock

BeKa

Lower Coverstock supplier

PP-NF50

Insert

press INFO press
natural-fibre boards are hot-pressed to produce carrier boards

Insert technology

Fibrit

Insert supplier

Side airbag

BMW 5 series III - More information

(of selected variant)

BMW

O.E. manufacturer (currently)

BMW

Brand:

5 series

Model:

III

Generation:

Model upgrading:

Variant

4-dr. Sedan

Body:

Dingolfing (1988 - 1995)

Assembly plant 1

Assembly plant 2:

Assembly plant 3:

E 34

Code:

E 34

Platform:

Class:

- mm

Length:

- mm

Width:

- mm

Height:

- mm

Wheelbase:

Sales Price:

BMW 5 series III - Production figures
(of all variants)

tba

Germany 1988:

tba

Germany 1989:

210200

Germany 1990:

184600

Germany 1991:

173700

Germany 1992:

145600

Germany 1993:

137700

Germany 1994:

50000

Germany 1995:

BMW 5 series III - Model history
(of all variants)

sorry - no information yet
