AUDI Q 7 Interior Information: Photos and Data about Door Panel, Instrument Panel and more!

Brand: AUDI
Model: Q 7
Start of production (SOP): 12.2005
End of production (EOP): ?
Class: SUV C

The following data-sets are available for this model:
Q 7 , 5-dr. Off-road vehicle 12.2005-?
No more data-sets
The blue arrow points to the currently active data-set.

AUDI Q 7 - SelfBase interior pictures: (of selected variant)

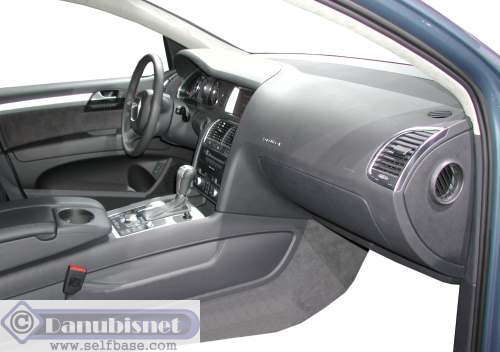

IP front

ZOOM MAX

IP side

ZOOM MAX

centre console

ZOOM MAX

DP front

ZOOM MAX

DPf backside

ZOOM MAX

DP rear

ZOOM MAX

DPr backside

ZOOM MAX

AUDI Q 7 - Instrument Panel data

(of selected variant)

Faurecia

IP Supplier 1:

none

IP Supplier 2:

PVC INFO PVC
PVC skins cast from powder (drysol)

IP Coverstock:

Faurecia

IP Coverstock supplier:

PS INFO PS
cast skins produced by powderslush technology

IP Coverstock technology:

PUR INFO PUR
crosslinked polyurethane - used as semi-rigid foam layer or as compact skin

IP Foam:

SMA-GF10 INFO SMA-GF10
styrene maleic anhydride reinforced with glass fibers (xx%)

IP Insert

injection INFO injection
high-pressure filling of heated tools with molten thermoplastic resin

IP Insert technology

Faurecia

IP Insert supplier

Separate binnacle

seamless INFO seamless
passenger airbag door construction, where part of the IP breaks in a defined way to form a door for the bag

Passenger airbag

AUDI Q 7 - Door Panel data

(of selected variant)

Peguform

Door Panel Supplier 1sss

none

Door Panel Supplier 2:

PVC INFO PVC
PVC skins cast from powder (drysol)

Upper coverstock

Peguform

Upper coverstock supplier

PS INFO PS
cast skins produced by powderslush technology

Upper coverstock technology

PUR INFO PUR
crosslinked polyurethane - used as semi-rigid foam layer or as compact skin

Upper foam

leather INFO leather
automotive leather qualities show low emissions and reduced shrinkage

Medaillon

yes

Medaillon foam

ABS INFO ABS
acrylonitrile-butadiene-styrene polymer

Medaillon insert

yes

Separate armrest

UEV INFO UEV
"unsupported expanded vinyl" - 2 layer vacuum-forming foil (compact PVC/PVC foam)

Lower Coverstock

BeKa

Lower Coverstock supplier

PC/ABS INFO PC/ABS
polycarbonate/ABS polymer - injection molding grade

Insert

injection INFO injection
high-pressure filling of heated tools with molten thermoplastic resin

Insert technology

Peguform

Insert supplier

Side airbag

AUDI Q 7 - More information

(of selected variant)

VW GROUP

O.E. manufacturer (currently)

AUDI

Brand:

Q 7

Model:

Generation:

Model upgrading:

Variant

5-dr. Off-road vehicle

Body:

Bratislava (2005 - ?)

Assembly plant 1

Assembly plant 2:

Assembly plant 3:

AU-716

Code:

Touareg

Platform:

SUV C

Class:

5086 mm

Length:

1983 mm

Width:

1737 mm

Height:

3002 mm

Wheelbase:

Sales Price:

AUDI Q 7 - Production figures
(of all variants)

1200

Slovakia 2005:

72600

Slovakia 2006:

tba

Slovakia 2007:

tba

Slovakia 2008:

tba

Slovakia 2009:

tba

Slovakia 2010:

tba

Slovakia 2011:

tba

Slovakia 2012:

tba

Slovakia 2013:

tba

Slovakia 2014:

tba

Slovakia 2015:

tba

Slovakia 2016:

tba

Slovakia 2017:

tba

Slovakia 2018:

tba

Slovakia 2019:

tba

Slovakia 2020:

tba

Slovakia 2021:

tba

Slovakia 2022:

tba

Slovakia 2023:

AUDI Q 7 - Model history
(of all variants)

sorry - no information yet
