AUDI A 3 II Interior Information: Photos and Data about Door Panel, Instrument Panel and more!

Brand: AUDI
Model: A 3
Start of production (SOP): 5.2003
End of production (EOP): ?
Class: C

The following data-sets are available for this model:
A 3 , 3-dr. Sedan 5.2003-?
A 3 , 5-dr. Sedan (Sportback) 5.2004-?
The blue arrow points to the currently active data-set.

AUDI A 3 II - SelfBase interior pictures: (of selected variant)

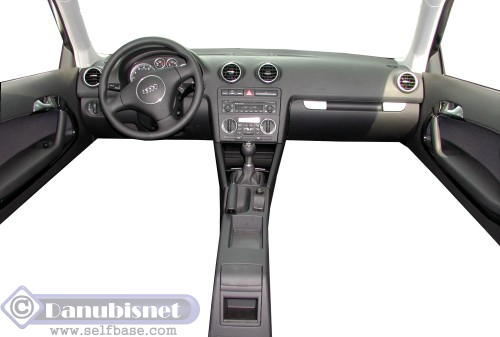

IP front

ZOOM MAX

IP side

ZOOM MAX

centre console

ZOOM MAX

DP front

ZOOM MAX

DPf backside

ZOOM MAX

DP rear

ZOOM MAX

DPr backside

ZOOM MAX

AUDI A 3 II - Instrument Panel data

(of selected variant)

Intier

IP Supplier 1:

none

IP Supplier 2:

PVC INFO PVC
PVC skins cast from powder (drysol)

IP Coverstock:

Intier

IP Coverstock supplier:

PS INFO PS
cast skins produced by powderslush technology

IP Coverstock technology:

PUR INFO PUR
crosslinked polyurethane - used as semi-rigid foam layer or as compact skin

IP Foam:

SMA-GF INFO SMA-GF
styrene maleic anhydride reinforced with glass fibers (xx%)

IP Insert

injection INFO injection
high-pressure filling of heated tools with molten thermoplastic resin

IP Insert technology

IP Insert supplier

Separate binnacle

seamless INFO seamless
passenger airbag door construction, where part of the IP breaks in a defined way to form a door for the bag

Passenger airbag

AUDI A 3 II - Door Panel data

(of selected variant)

Seeber

Door Panel Supplier 1sss

none

Door Panel Supplier 2:

UEV INFO UEV
"unsupported expanded vinyl" - 2 layer vacuum-forming foil (compact PVC/PVC foam)

Upper coverstock

Upper coverstock supplier

VF INFO VF
vacuum-forming technology ; uses sheetstock

Upper coverstock technology

PVC INFO PVC
PVC skins cast from powder (drysol)

Upper foam

fabric INFO fabric
polyester fabrics ; rarely polypropylene or polyamide

Medaillon

PUR cut INFO PUR cut
polyurethane foamsheet, cut from a block (normally open-cell)

Medaillon foam

NF INFO NF
natural fibre mixtures

Medaillon insert

yes

Separate armrest

UEV INFO UEV
"unsupported expanded vinyl" - 2 layer vacuum-forming foil (compact PVC/PVC foam)

Lower Coverstock

Lower Coverstock supplier

ABS INFO ABS
acrylonitrile-butadiene-styrene polymer

Insert

injection INFO injection
high-pressure filling of heated tools with molten thermoplastic resin

Insert technology

Seeber

Insert supplier

Side airbag

AUDI A 3 II - More information

(of selected variant)

VW GROUP

O.E. manufacturer (currently)

AUDI

Brand:

A 3

Model:

Generation:

Model upgrading:

Variant

3-dr. Sedan

Body:

Ingolstadt (2003 - ?)

Assembly plant 1

Assembly plant 2:

Assembly plant 3:

AB-2

Code:

Platform:

Class:

4203 mm

Length:

1765 mm

Width:

1421 mm

Height:

2578 mm

Wheelbase:

Sales Price:

AUDI A 3 II - Production figures
(of all variants)

105300

Germany 2003:

155200

Germany 2004:

220600

Germany 2005:

234100

Germany 2006:

tba

Germany 2007:

tba

Germany 2008:

tba

Germany 2009:

tba

Germany 2010:

tba

Germany 2011:

tba

Germany 2012:

tba

Germany 2013:

tba

Germany 2014:

tba

Germany 2015:

tba

Germany 2016:

tba

Germany 2017:

tba

Germany 2018:

tba

Germany 2019:

tba

Germany 2020:

tba

Germany 2021:

tba

Germany 2022:

tba

Germany 2023:

tba

Germany 2024:

AUDI A 3 II - Model history
(of all variants)

sorry - no information yet
