ALFA ROMEO 159 Interior Information: Photos and Data about Door Panel, Instrument Panel and more!

Brand: ALFA ROMEO
Model: 159
Start of production (SOP): 5.2005
End of production (EOP): ?
Class: D

The following data-sets are available for this model:
159 , 4-dr. Sedan 5.2005-?
159 , 5-dr. Station (Sportwagon) 9.2005-?
The blue arrow points to the currently active data-set.

ALFA ROMEO 159 - SelfBase interior pictures: (of selected variant)

IP front

ZOOM MAX

IP side

ZOOM MAX

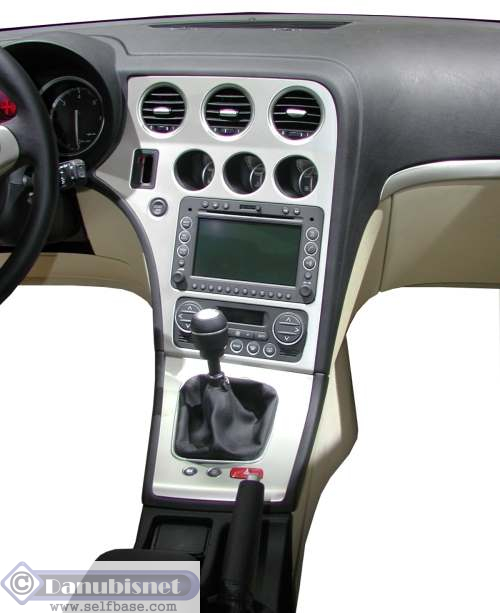

centre console

ZOOM MAX

DP front

ZOOM MAX

DPf backside

ZOOM MAX

DP rear

ZOOM MAX

DPr backside

ZOOM MAX

ALFA ROMEO 159 - Instrument Panel data

(of selected variant)

FIAT

IP Supplier 1:

none

IP Supplier 2:

PVC INFO PVC
PVC skins cast from powder (drysol)

IP Coverstock:

IP Coverstock supplier:

PS INFO PS
cast skins produced by powderslush technology

IP Coverstock technology:

PUR INFO PUR
crosslinked polyurethane - used as semi-rigid foam layer or as compact skin

IP Foam:

SMA-GF ? INFO SMA-GF ?
styrene maleic anhydride reinforced with glass fibers (xx%)

IP Insert

injection INFO injection
high-pressure filling of heated tools with molten thermoplastic resin

IP Insert technology

IP Insert supplier

Separate binnacle

seamless INFO seamless
passenger airbag door construction, where part of the IP breaks in a defined way to form a door for the bag

Passenger airbag

ALFA ROMEO 159 - Door Panel data

(of selected variant)

JCI

Door Panel Supplier 1sss

none

Door Panel Supplier 2:

UEV INFO UEV
"unsupported expanded vinyl" - 2 layer vacuum-forming foil (compact PVC/PVC foam)

Upper coverstock

Upper coverstock supplier

VF INFO VF
vacuum-forming technology ; uses sheetstock

Upper coverstock technology

PVC INFO PVC
PVC skins cast from powder (drysol)

Upper foam

leatherette INFO leatherette
SEV with leather-like haptic properties ; can be cut & stitched

Medaillon

PUR cut INFO PUR cut
polyurethane foamsheet, cut from a block (normally open-cell)

Medaillon foam

Medaillon insert

yes

Separate armrest

UEV INFO UEV
"unsupported expanded vinyl" - 2 layer vacuum-forming foil (compact PVC/PVC foam)

Lower Coverstock

Lower Coverstock supplier

Insert

injection INFO injection
high-pressure filling of heated tools with molten thermoplastic resin

Insert technology

JCI

Insert supplier

Side airbag

ALFA ROMEO 159 - More information

(of selected variant)

FIAT

O.E. manufacturer (currently)

ALFA ROMEO

Brand:

159

Model:

Generation:

Model upgrading:

Variant

4-dr. Sedan

Body:

Pomigliano (2005 - ?)

Assembly plant 1

Assembly plant 2:

Assembly plant 3:

939

Code:

Epsilon

Platform:

Class:

4660 mm

Length:

1830 mm

Width:

1422 mm

Height:

2700 mm

Wheelbase:

Sales Price:

ALFA ROMEO 159 - Production figures
(of all variants)

38500

Italy 2005:

71800

Italy 2006:

tba

Italy 2007:

tba

Italy 2008:

tba

Italy 2009:

tba

Italy 2010:

tba

Italy 2011:

tba

Italy 2012:

tba

Italy 2013:

tba

Italy 2014:

tba

Italy 2015:

tba

Italy 2016:

tba

Italy 2017:

tba

Italy 2018:

tba

Italy 2019:

tba

Italy 2020:

tba

Italy 2021:

tba

Italy 2022:

tba

Italy 2023:

ALFA ROMEO 159 - Model history
(of all variants)

sorry - no information yet
