ALFA ROMEO 147 Interior Information: Photos and Data about Door Panel, Instrument Panel and more!

Brand: ALFA ROMEO
Model: 147
Start of production (SOP): 2.2001
End of production (EOP): 9.2008
Class: C

The following data-sets are available for this model:
147 , 3-dr. Sedan 2.2001-9.2004
147 , 5-dr. Sedan 2.2001-9.2004
147 , FL1, 3-dr. Sedan 9.2004-9.2008
147 , FL1, 5-dr. Sedan 9.2004-9.2008
The blue arrow points to the currently active data-set.

ALFA ROMEO 147 - SelfBase interior pictures: (of selected variant)

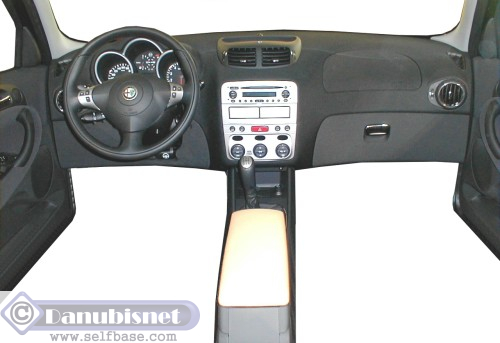

IP front

ZOOM MAX

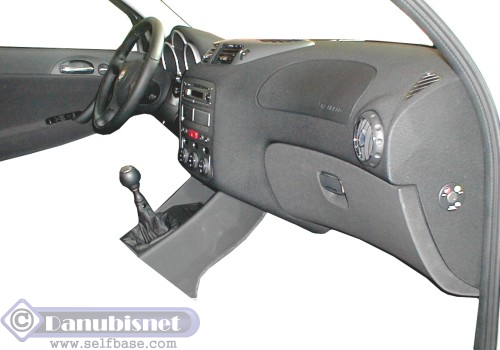

IP side

ZOOM MAX

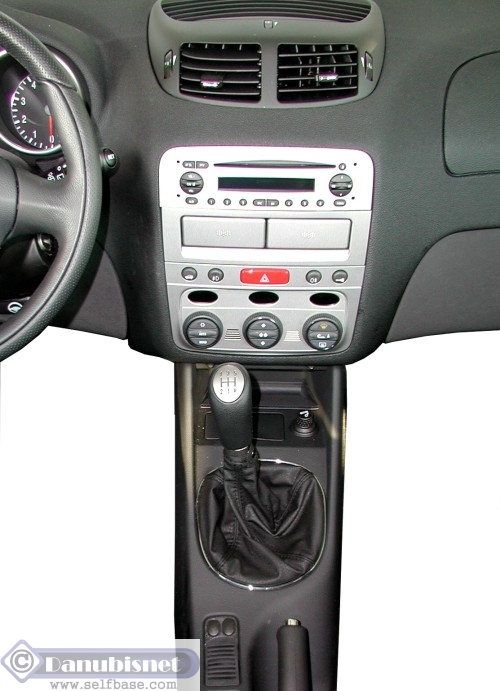

centre console

ZOOM MAX

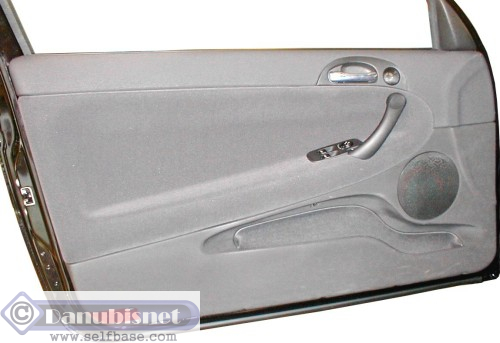

DP front

ZOOM MAX

DPf backside

ZOOM MAX

DP rear

ZOOM MAX

DPr backside

ZOOM MAX

ALFA ROMEO 147 - Instrument Panel data

(of selected variant)

IP Supplier 1:

IP Supplier 2:

ABS/PVC INFO ABS/PVC
plasticised PVC blended with ABS (heat-modifier) - for vacuum-forming sheets

IP Coverstock:

BeKa

IP Coverstock supplier:

VF INFO VF
vacuum-forming technology ; uses sheetstock

IP Coverstock technology:

PUR INFO PUR
crosslinked polyurethane - used as semi-rigid foam layer or as compact skin

IP Foam:

IP Insert

injection INFO injection
high-pressure filling of heated tools with molten thermoplastic resin

IP Insert technology

IP Insert supplier

Separate binnacle

separate lid INFO separate lid
passenger airbag door construction, where a separate door is assembled with the IP.

Passenger airbag

ALFA ROMEO 147 - Door Panel data

(of selected variant)

JCI

Door Panel Supplier 1sss

Door Panel Supplier 2:

UEV INFO UEV
"unsupported expanded vinyl" - 2 layer vacuum-forming foil (compact PVC/PVC foam)

Upper coverstock

Upper coverstock supplier

VF INFO VF
vacuum-forming technology ; uses sheetstock

Upper coverstock technology

PVC INFO PVC
PVC skins cast from powder (drysol)

Upper foam

fabric INFO fabric
polyester fabrics ; rarely polypropylene or polyamide

Medaillon

Medaillon foam

Medaillon insert

Separate armrest

UEV INFO UEV
"unsupported expanded vinyl" - 2 layer vacuum-forming foil (compact PVC/PVC foam)

Lower Coverstock

Lower Coverstock supplier

Insert

Insert technology

Insert supplier

Side airbag

ALFA ROMEO 147 - More information

(of selected variant)

FIAT

O.E. manufacturer (currently)

ALFA ROMEO

Brand:

147

Model:

Generation:

Model upgrading:

Variant

3-dr. Sedan

Body:

Pomigliano (2001 - 2004)

Assembly plant 1

Assembly plant 2:

Assembly plant 3:

937

Code:

Platform:

Class:

4170 mm

Length:

1729 mm

Width:

1439 mm

Height:

2546 mm

Wheelbase:

MY 2004: ca.17000€

Sales Price:

ALFA ROMEO 147 - Production figures
(of all variants)

107500

Italy 2001:

106600

Italy 2002:

102000

Italy 2003:

80900

Italy 2004:

71100

Italy 2005:

63000

Italy 2006:

tba

Italy 2007:

tba

Italy 2008:

ALFA ROMEO 147 - Model history
(of all variants)

sorry - no information yet
